TC-45

Product Description

Discover elegance in simplicity with our minimalist casement window system, where sleek lines and uncluttered design harmonize to create a serene, understated aesthetic. This system offers not only a contemporary look but also ensures efficient functionality, blending seamlessly into any modern living space

Technical Specification

Max. Sash height

2.45 m (approx) Door Size
1.55 m (approx) Window Size

Max. Sash Width

1 m (approx) Door Size
0.85 m (approx) Window Size

Max. Sash Weight

180 Kg (approx) Door weight
80 Kg (approx) Window weight

Finishes

Anodise, Powder Coating, Wooden Coating and PVDF Coating

Aluminum Grade

Alloy Grade 6063-T6

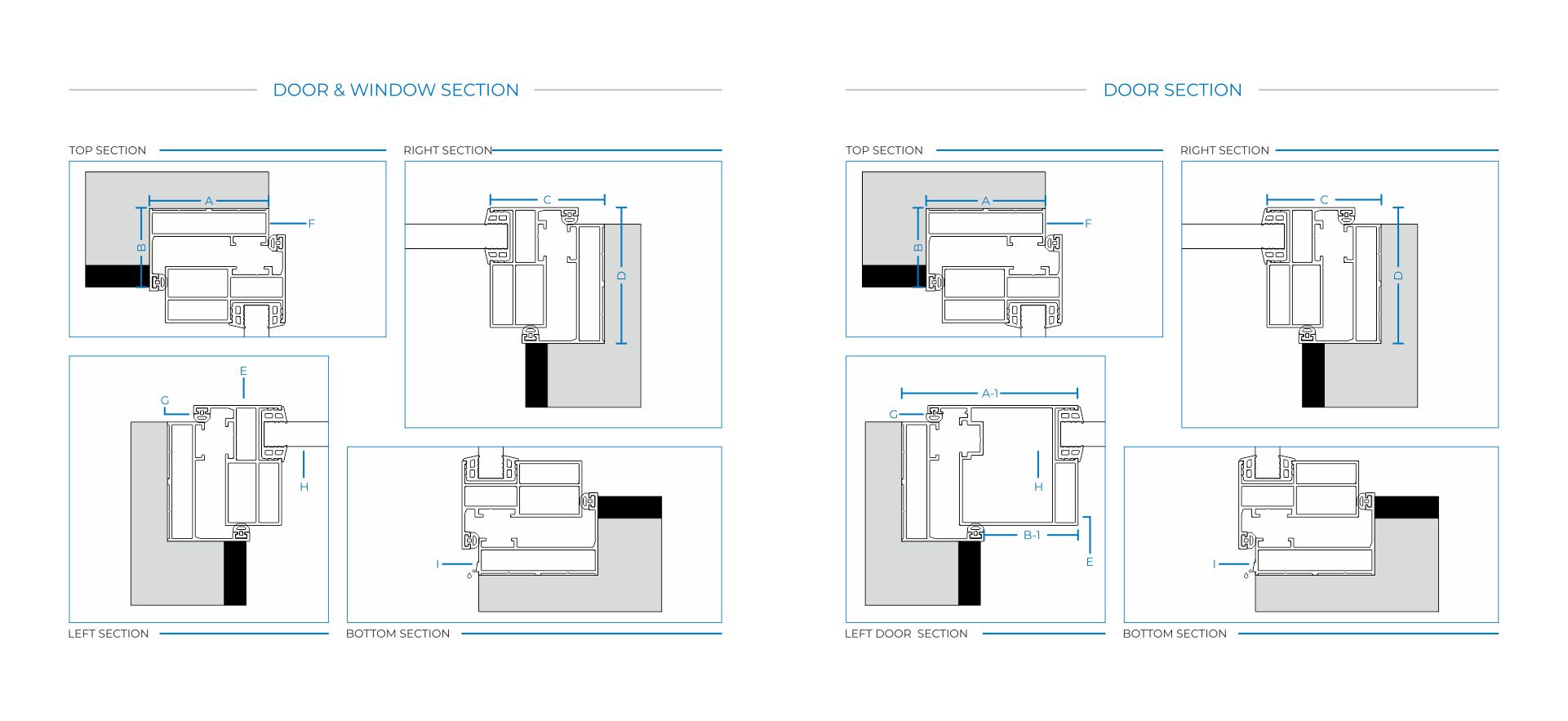

Door & Window Section

Size
A - 65mm,
B - 48mm,
C - 63mm,
D - 75mm
Sash Profile
Feather-light Sash Profiles, Unmatched Durability & Modern Light Control.
Outer Frame Profile
Low-Maintenance Aluminium Outer Frame Profiles, for Enduring Minimalist Aesthetics.
EPDM Gasket
EPDM has very excellent weather resistance & UV resistance, EPDM gasket is highly suitable for direct sunlight and rainy water.
Glass
Accommodates 8mm, 10mm, 12mm single glass & 13.52mm laminated glass and 6+12+6mm DCU glass, enhancing durability and visual appeal in design.
Drainage System
Integrated water management with drainage slots in each track for efficient water runoff, suitable for rainy areas.

Door Section

Size
A - 65mm,
A-1 - 97mm,
B - 48mm,
B-1 - 52mm,
C - 63mm,
D - 75mm
Sash Profile
Feather-light Sash Profiles, Unmatched Durability & Modern Light Control.
Outer Frame Profile
Low-Maintenance Aluminium Outer Frame Profiles, for Enduring Minimalist Aesthetics.
EPDM Gasket
EPDM has very excellent weather resistance & UV resistance, EPDM gasket is highly suitable for direct sunlight and rainy water.
Glass
Accommodates 8mm, 10mm, 12mm single glass & 13.52mm laminated glass and 6+12+6mm DCU glass, enhancing durability and visual appeal in design.
Drainage System
Integrated water management with drainage slots in each track for efficient water runoff, suitable for rainy areas.
